Three instruments: the aggregation reversal (the top-ranked unit is a
property of the weight vector — Performance Aggregation Theorem), the Pareto
performance frontier of six units in (cost, quality), and first-order
performance dynamics with an explicit half-life.
Mirrored in DCT_V1_Ch11_Lab.xlsx.
import numpy as np
import matplotlib.pyplot as plt
plt.rcParams['figure.dpi']=110
import numpy as np
SEED = 26111
UNITS = ["U1","U2","U3","U4","U5","U6"]
# dims: financial, customer, operational, innovation
S = np.array([
[82,55,70,40],
[60,85,65,90],
[75,70,60,80],
[50,60,90,45],
[68,72,75,62],
[90,40,55,35]], dtype=float)
W1 = np.array([0.70,0.10,0.10,0.10]) # finance-weighted
W2 = np.array([0.05,0.35,0.10,0.50]) # customer/innovation-weighted
# frontier data: (cost, quality) — cost lower-better, quality higher-better
CQ = np.array([[60,70],[45,82],[55,88],[70,90],[50,75],[65,60]], dtype=float)
P0, DRIV, RHO = 50.0, 80.0, 0.8
def composites(w): return S @ w
def pareto_efficient():
eff = []
for i,(c,q) in enumerate(CQ):
dominated = any((CQ[j,0] <= c) and (CQ[j,1] >= q) and (j != i)
and ((CQ[j,0] < c) or (CQ[j,1] > q)) for j in range(6))
eff.append(not dominated)
return np.array(eff)
def p_path(n=12):
p = np.empty(n+1); p[0] = P0
for k in range(n): p[k+1] = RHO*p[k] + (1-RHO)*DRIV
return p
def reference_values():
c1, c2 = composites(W1), composites(W2)
eff = pareto_efficient()
return {
"comp_U6_w1": round(float(c1[5]),4), "comp_U2_w1": round(float(c1[1]),4),
"comp_U2_w2": round(float(c2[1]),4), "comp_U6_w2": round(float(c2[5]),4),
"top_w1": UNITS[int(np.argmax(c1))], "top_w2": UNITS[int(np.argmax(c2))],
"n_pareto_efficient": int(eff.sum()),
"p_at_8": round(float(p_path()[8]),4),
"half_life": round(float(np.log(2)/np.log(1/RHO)),4),
}
if __name__ == "__main__":
[print(f"{k:20s} {v}") for k,v in reference_values().items()]comp_U6_w1 76.0 comp_U2_w1 66.0 comp_U2_w2 84.25 comp_U6_w2 41.5 top_w1 U6 top_w2 U2 n_pareto_efficient 3 p_at_8 74.9668 half_life 3.1063
Panel 1 — The aggregation reversal
Six units scored on four dimensions. Weight scheme (finance-heavy) crowns U6; scheme (customer/innovation-heavy) crowns U2 — with U6 falling to 41.5. Neither ranking is wrong; each is an argument made numerical. The theorem's demand: publish the weights with the ranking.
c1, c2 = composites(W1), composites(W2)
print(f"{'unit':>5s} {'fin':>5s} {'cust':>5s} {'ops':>5s} {'innov':>6s} | {'w1 comp':>8s} {'w2 comp':>8s}")
for i,u in enumerate(UNITS):
print(f"{u:>5s} {S[i,0]:5.0f} {S[i,1]:5.0f} {S[i,2]:5.0f} {S[i,3]:6.0f} | {c1[i]:8.2f} {c2[i]:8.2f}")
print(f"\ntop under w1 = {UNITS[np.argmax(c1)]} top under w2 = {UNITS[np.argmax(c2)]}")unit fin cust ops innov | w1 comp w2 comp U1 82 55 70 40 | 73.90 50.35 U2 60 85 65 90 | 66.00 84.25 U3 75 70 60 80 | 73.50 74.25 U4 50 60 90 45 | 54.50 55.00 U5 68 72 75 62 | 68.50 67.10 U6 90 40 55 35 | 76.00 41.50 top under w1 = U6 top under w2 = U2

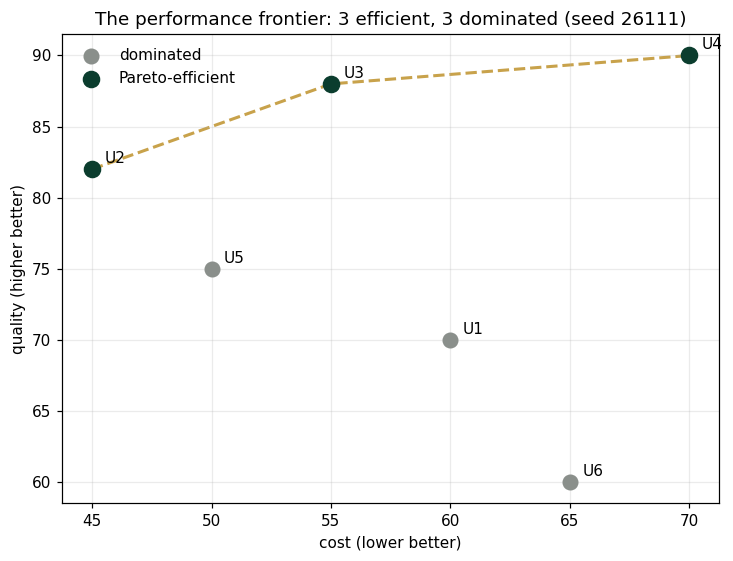

Panel 2 — The performance frontier
The same six units in (cost, quality): three are Pareto-efficient, three are dominated. The Enterprise Performance Frontier Theorem: improvement without trade-off exists only for the dominated — on the frontier, every gain in one dimension is paid for in the other.
eff = pareto_efficient()
fig, ax = plt.subplots(figsize=(6.8,5.2))
front = CQ[eff][np.argsort(CQ[eff][:,0])]
ax.plot(front[:,0], front[:,1], c="#C8A24B", lw=2, ls="--", zorder=1)
ax.scatter(CQ[~eff,0], CQ[~eff,1], c="#8A8F8B", s=90, label="dominated", zorder=2)
ax.scatter(CQ[eff,0], CQ[eff,1], c="#0B3D2E", s=110, label="Pareto-efficient", zorder=3)
for i,u in enumerate(UNITS):
ax.annotate(u, CQ[i], textcoords="offset points", xytext=(8,4), fontsize=10)
ax.set(xlabel="cost (lower better)", ylabel="quality (higher better)",
title="The performance frontier: 3 efficient, 3 dominated (seed 26111)")
ax.legend(frameon=False); ax.grid(alpha=.25); plt.tight_layout(); plt.show()
for u,(c,q),e in zip(UNITS, CQ, eff):
print(f"{u}: cost {c:4.0f} quality {q:4.0f} {'EFFICIENT' if e else 'dominated'}")
U1: cost 60 quality 70 dominated U2: cost 45 quality 82 EFFICIENT U3: cost 55 quality 88 EFFICIENT U4: cost 70 quality 90 EFFICIENT U5: cost 50 quality 75 dominated U6: cost 65 quality 60 dominated

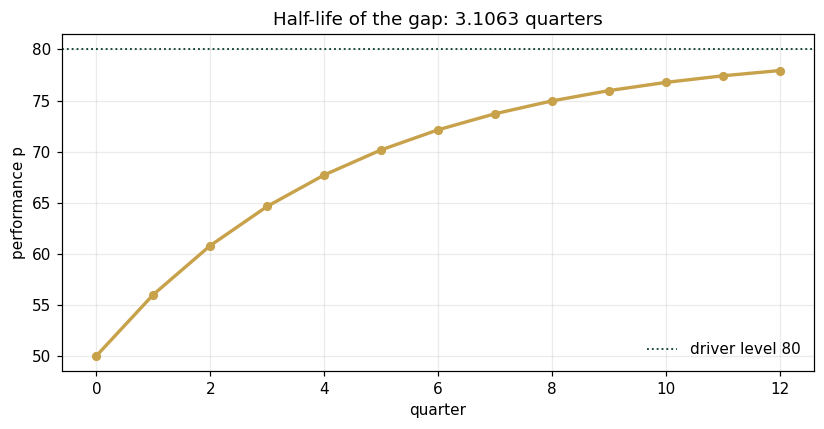

Panel 3 — Performance dynamics
Performance responds to its drivers with inertia: with . The gap to the driver level halves every quarters — Performance Evolves Dynamically (Prop.), with a number attached: today's initiative reads in the metrics three quarters later.
p = p_path()
t = np.arange(len(p))
fig, ax = plt.subplots(figsize=(7.6,4.0))
ax.plot(t, p, "o-", c="#C8A24B", lw=2.2, ms=5)
ax.axhline(DRIV, c="#0B3D2E", ls=":", lw=1.2, label=f"driver level {DRIV:.0f}")
ax.set(xlabel="quarter", ylabel="performance p", title=f"Half-life of the gap: {np.log(2)/np.log(1/RHO):.4f} quarters")
ax.legend(frameon=False); ax.grid(alpha=.25); plt.tight_layout(); plt.show()
print(f"p at k=8: {p[8]:.4f} half-life: {np.log(2)/np.log(1/RHO):.4f} quarters")
p at k=8: 74.9668 half-life: 3.1063 quarters
Validation — agrees with DCT_V1_Ch11_Lab.xlsx
ref = reference_values()
expected = {"comp_U6_w1":76.0,"comp_U2_w1":66.0,"comp_U2_w2":84.25,"comp_U6_w2":41.5,
"n_pareto_efficient":3,"p_at_8":74.9668,"half_life":3.1063}
for k,v in expected.items():
assert abs(ref[k]-v)<5e-4, f"MISMATCH {k}"
print(f"PASS {k:20s} {ref[k]}")
assert ref["top_w1"]=="U6" and ref["top_w2"]=="U2"
print("PASS ranking reversal U6 (w1) → U2 (w2)")
print("\nAll checkpoints agree — seed 26111.")PASS comp_U6_w1 76.0 PASS comp_U2_w1 66.0 PASS comp_U2_w2 84.25 PASS comp_U6_w2 41.5 PASS n_pareto_efficient 3 PASS p_at_8 74.9668 PASS half_life 3.1063 PASS ranking reversal U6 (w1) → U2 (w2) All checkpoints agree — seed 26111.
Next: Exercises 11.9–11.12 (Part C) rebuild the frontier with your own weights; AXIOM-11's weighting console animates the reversal. Solutions: IM Ch. 11.
