Vol. I, Ch. 8

DCT Laboratory — Volume I, Chapter 8

Stochastic Enterprise Dynamics

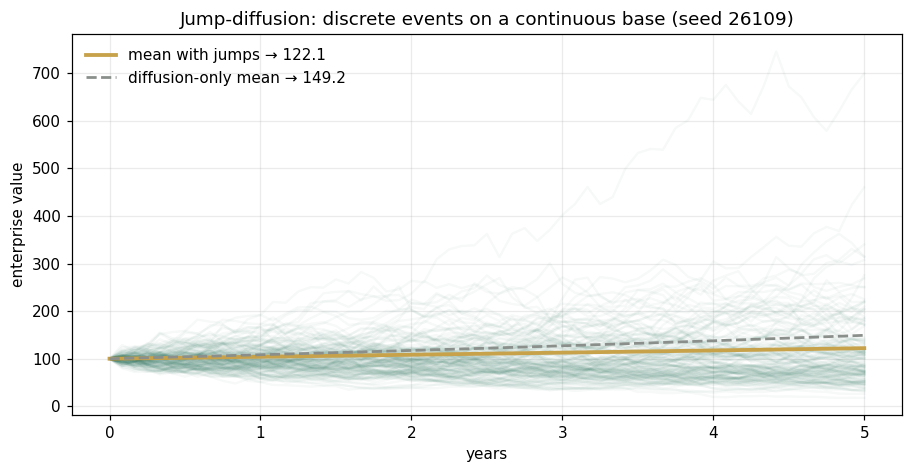

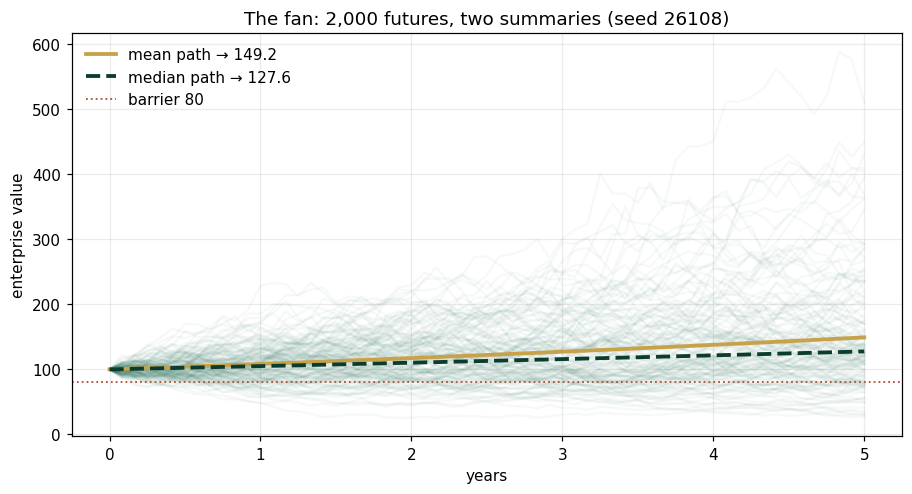

This laboratory demonstrates

Seed 26108 · Companion to Chapter 8 and AXIOM Lab 1.8 (module AXIOM-08) · Mirrored in DCT_V1_Ch08_Lab.xlsx

This laboratory reproduces Worked Example 8.1, Will the Digital Program Breach the Floor?, with the book's declarations, and works the five steps of AXIOM Lab 1.8, Putting Odds on Meridian's Plan: watch the fan form, check the multi-year view, price an event risk, feel the flaw of averages, and put odds on the program. The worked example's 100,000 paths are drawn, as in the book, with random seed 8 (Volume II, Online Appendix 1.B.4), so its odds come out exactly as printed; the lab's seed 26108 is used only for fresh draws, labelled as such. Every Meridian number below is the book's or follows from its declarations (Worked Example 8.1, Table 8.5, Figures 8.1–8.4, Sections 8.6–8.9, Online Appendix 8.B); the final cell checks the printed ones. Money is in $ million.

The declarations (Worked Example 8.1, Step 1; Sections 8.6 and 8.7)

The plan. The digital program's liquidity path of Chapters 1 and 5, read quarterly over the program's three years: Chapter 1's liquidity index (today 100, that is $620 million, $6.2 million a point) relaxes toward 112 at 35 percent a year, less the program's cash draw, which deepens to 28 points after two years. Liquidity dips from $620 million to a trough of $482 million in quarter 7, $132 million above the board's floor of $350 million (Table 5.4), and recovers to $510 million by the end of year 3. The board's risk appetite tolerates at most a 5 percent chance of breaching the floor during the program.

The uncertainty (Step 1). Execution and market deviation: each quarter brings a surprise with a standard deviation of $50 million, and 60 percent of a surprise carries into the next quarter, Ek+1=0.6Ek+wkE_{k+1} = 0.6E_k + w_k. Funding-window events: a window closes about once a decade (λ=0.10\lambda = 0.10 a year), and each closure removes on average $120 million of liquidity (standard deviation $50 million; gamma distributed in the book's engine) that is not recovered within the program. Liquidity is the plan plus the deviation less the closures. The levers (Step 5): a standby line that replaces up to $100 million of any closure, and a phased build whose cash draw deepens to 20 points instead of 28.

Two more Meridian declarations. Industrial Systems' quarterly revenue deviation from plan follows Rk+1=0.7Rk+wkR_{k+1} = 0.7R_k + w_k with shocks of standard deviation $15 million, and a covenant test bites at $45 million below plan (Section 8.6). Regulatory interventions arrive at λ=0.15\lambda = 0.15 a year and cost on average $40 million, with a standard deviation of $30 million (Section 8.7).

Python Code
import numpy as np
import matplotlib.pyplot as plt
from math import erf, sqrt, exp
plt.rcParams.update({"figure.dpi": 110, "axes.spines.top": False, "axes.spines.right": False})
SEED = 26108          # the lab's seed: fresh draws only, labelled as such
BOOK_SEED = 8         # the book's stream for Worked Example 8.1 (Volume II, Online Appendix 1.B.4)

def Phi(z):
    return 0.5 * (1 + erf(z / sqrt(2)))

# Worked Example 8.1 ($ million)
USD_PER_POINT, QUARTERS, N_PATHS = 6.2, 12, 100_000
FLOOR, APPETITE = 350.0, 0.05
A_E, SD_W = 0.6, 50.0                                   # deviation: share carried over; surprise sd a quarter
LAM, J_MEAN, J_SD = 0.10, 120.0, 50.0                   # closures a year; size: mean and sd
SHAPE, SCALE = (J_MEAN / J_SD) ** 2, J_SD ** 2 / J_MEAN # gamma sizes with that mean and sd
LINE, DEPTH, DEPTH_PHASED = 100.0, 28.0, 20.0           # Step 5's levers; the plan's draw depth

def plan(depth=DEPTH):
    # Chapter 1's digital liquidity index, quarterly for three years, in $ million
    t = np.arange(QUARTERS + 1) / 4
    return USD_PER_POINT * (112 + (100 - 112) * np.exp(-0.35 * t) - depth * (t / 2) * np.exp(1 - t / 2))

def simulate(noise=True, events=True, line=0.0, depth=DEPTH, n=N_PATHS, seed=BOOK_SEED):
    # Liquidity paths [n, 13] and each path's number of closures. The draws follow the book's engine,
    # in its order: each quarter the n surprises, the n closure counts, then the sizes of that quarter's
    # closures in path order. A channel switched off keeps its draws, so every scenario sees the same
    # futures; seed 8 gives the book's.
    rng = np.random.default_rng(seed)
    pl, E, J = plan(depth), np.zeros(n), np.zeros(n)
    L = np.empty((n, QUARTERS + 1)); L[:, 0] = pl[0]
    closures = np.zeros(n, dtype=int)
    for k in range(QUARTERS):
        w = SD_W * rng.standard_normal(n)
        cnt = rng.poisson(LAM / 4, n)
        sizes = rng.gamma(SHAPE, SCALE, cnt.sum())
        lost = np.bincount(np.repeat(np.arange(n), cnt), np.maximum(sizes - line, 0.0), minlength=n)
        if noise:
            E = A_E * E + w
        if events:
            J, closures = J - lost, closures + cnt
        L[:, k + 1] = pl[k + 1] + E + J
    return L, closures

def odds(L):
    # breach probability, its standard error, and each path's lowest quarter
    lows = L[:, 1:].min(axis=1)
    p = float((lows < FLOOR).mean())
    return p, sqrt(p * (1 - p) / len(lows)), lows

# Section 8.6: Industrial Systems' revenue deviation; Section 8.7: regulatory interventions ($ million)
A_R, SD_R, R0, COVENANT = 0.7, 15.0, 30.0, 45.0
LAM_R, JR_MEAN, JR_SD = 0.15, 40.0, 30.0

pl = plan()
print("plan by quarter:", np.round(pl).astype(int))
print(f"trough ${pl.min():.0f} million in quarter {pl.argmin()}, ${pl.min() - FLOOR:.0f} million above the floor; "
      f"${pl[-1]:.0f} million at the end of year 3")
print(f"closure sizes: gamma, shape {SHAPE:.2f} and scale {SCALE:.2f} (mean {SHAPE * SCALE:.0f}, sd {sqrt(SHAPE) * SCALE:.0f})")
plan by quarter: [620 574 540 516 499 488 483 482 484 488 494 502 510]
trough $482 million in quarter 7, $132 million above the floor; $510 million at the end of year 3
closure sizes: gamma, shape 5.76 and scale 20.83 (mean 120, sd 50)

Panel 1 — Watch the fan form (Theorems 8.2 and 8.3; Figures 8.1–8.2: a budget of $21 million, 1.6 percent)

AXIOM Lab 1.8, step 1. Start Industrial Systems' revenue deviation after a strong quarter, R0=30R_0 = 30. Its law stays normal, and its mean and variance follow the exact recursions of Theorem 8.3(i), mk+1=0.7 mkm_{k+1} = 0.7\,m_k and σk+12=0.49 σk2+152\sigma^2_{k+1} = 0.49\,\sigma^2_k + 15^2: the fan drifts back toward plan and widens (means 21, 15 and 7, standard deviations 15, 18 and 20 after one, two and four quarters; Figure 8.1) until it settles at the long-run variance 152/(1−0.72)≈44115^2/(1 - 0.7^2) \approx 441. The volatility budget is $21 million, not $15 million: persistence inflates the naive figure by 1/1−0.49=1.401/\sqrt{1 - 0.49} = 1.40. A covenant test that bites at $45 million below plan fails with a long-run chance of Φ(−45/21)≈\Phi(-45/21) \approx 1.6 percent a quarter, against 0.13 percent if persistence were ignored. Sweep the persistence through one and the band stops settling: with no restoring force the spread grows like 15k15\sqrt{k} (Figure 8.2). Halving the persistence to 0.35 cuts the budget to $16.0 million and the chance to 0.25 percent (Online Appendix 8.B.4); Online Appendix 8.B.3 solves the same Lyapunov equation for two coupled readings. Fresh paths drawn with the lab's seed scatter while their law moves by the exact rule.

Python Code
def revenue_law(k, a=A_R, s=SD_R, r0=R0):
    # Theorem 8.3(i): R_k is normal, mean a^k r0, variance s^2 (1 + a^2 + ... + a^(2k-2))
    var = s ** 2 * k if a == 1 else s ** 2 * (1 - a ** (2 * k)) / (1 - a ** 2)
    return a ** k * r0, sqrt(var)

VAR_INF = SD_R ** 2 / (1 - A_R ** 2)
BUDGET = sqrt(VAR_INF)
P_COV, P_NAIVE = Phi(-COVENANT / BUDGET), Phi(-COVENANT / SD_R)
rng = np.random.default_rng(SEED)                      # fresh draws, lab seed
R = np.empty((100_000, 41)); R[:, 0] = R0
for k in range(40):
    R[:, k + 1] = A_R * R[:, k] + SD_R * rng.standard_normal(100_000)
print("after a strong quarter (R0 = +30): the exact law, and 100,000 fresh paths (seed 26108)")
print("quarters    mean      sd    simulated: mean      sd")
for k in (1, 2, 4, 8, 40):
    m_, s_ = revenue_law(k)
    print(f"{k:8d} {m_:7.2f} {s_:7.2f} {R[:, k].mean():18.2f} {R[:, k].std():7.2f}")
print(f"long run: variance 15^2/(1 - 0.7^2) = {VAR_INF:.1f}; volatility budget ${BUDGET:.2f} million, "
      f"{BUDGET / SD_R:.2f} times the shock")
tail = float((R[:, 40] < -COVENANT).mean())
print(f"covenant test at -45: long-run chance {100 * P_COV:.2f}% a quarter (fresh paths, quarter 40: {100 * tail:.2f}% "
      f"+/- {100 * sqrt(tail * (1 - tail) / 1e5):.2f}); ignoring persistence {100 * P_NAIVE:.3f}%")

print("\nthe variance saturator: persistence, long-run sd, and the covenant test's chance a quarter")
for a in (0.0, 0.35, 0.5, 0.7, 0.9, 0.95, 0.99):
    sd_ = SD_R / sqrt(1 - a ** 2)
    print(f"  a = {a:4.2f}: sd {sd_:6.1f}   chance {100 * Phi(-COVENANT / sd_):6.2f}%")
print("  a = 1.00: no long run; sd after 4, 8, 20 and 40 quarters (15 sqrt k):",
      ", ".join(f"{revenue_law(k, a=1.0)[1]:.1f}" for k in (4, 8, 20, 40)))
HALF = SD_R / sqrt(1 - 0.35 ** 2)
P_HALF = Phi(-COVENANT / HALF)
print(f"halving persistence to 0.35 (Online Appendix 8.B.4): budget ${HALF:.2f} million, chance {100 * P_HALF:.3f}% "
      f"a quarter, {P_COV / P_HALF:.1f} times smaller, with no change in the market")

# Online Appendix 8.B.3: two readings, Sigma = A Sigma A' + S, iterated from zero and in closed form
A2, S2 = np.array([[0.8, 0.2], [0.0, 0.6]]), np.diag([0.04, 0.01])
SIG = np.zeros((2, 2))
for _ in range(400):
    SIG = A2 @ SIG @ A2.T + S2
s22 = 0.01 / (1 - 0.6 ** 2); s12 = 0.12 * s22 / 0.52; s11 = (0.32 * s12 + 0.04 * s22 + 0.04) / 0.36
print(f"two readings: Sigma_inf = [[{SIG[0, 0]:.5f}, {SIG[0, 1]:.6f}], [{SIG[1, 0]:.6f}, {SIG[1, 1]:.6f}]] "
      f"(closed form {s11:.5f}, {s12:.6f}, {s22:.6f}); long-run sds {sqrt(SIG[0, 0]):.3f} and {sqrt(SIG[1, 1]):.3f}")

fig, (ax, bx) = plt.subplots(1, 2, figsize=(7.6, 3.6))
q = np.arange(41)
law = np.array([revenue_law(k) for k in q])
for i in range(25):
    ax.plot(q[:21], R[i, :21], color="#999999", lw=0.5, alpha=0.6)
ax.fill_between(q[:21], law[:21, 0] - 2 * law[:21, 1], law[:21, 0] + 2 * law[:21, 1], color="#1F4E79", alpha=0.15,
                lw=0, label="mean ± 2 sd, exact law")
ax.plot(q[:21], law[:21, 0], color="#1F4E79", lw=2, label=r"mean: $30 \times 0.7^{k}$")
ax.axhline(-COVENANT, color="#B71C1C", lw=0.9, ls="--", label="covenant test: 45 below plan")
ax.set(xlabel="quarters after a strong quarter", ylabel="revenue deviation from plan (\\$ million)", xlim=(0, 20),
       ylim=(-90, 130), xticks=range(0, 21, 4), title="Paths scatter; the law moves exactly")
ax.legend(frameon=False, fontsize=7, loc="upper right")
for a, col, ls in ((0.35, "#616161", ":"), (0.7, "#1F4E79", "-"), (0.9, "#E65100", "--"), (1.0, "#B71C1C", "-")):
    bx.plot(q, [2 * revenue_law(k, a=a)[1] for k in q], color=col, lw=1.8, ls=ls,
            label=f"a = {a:.2f}" + (": no restoring force" if a == 1 else f": settles at ±{2 * SD_R / sqrt(1 - a * a):.0f}"))
bx.set(xlabel="quarters", ylabel="half-width of the 2-sd band (\\$ million)", xlim=(0, 40), ylim=(0, 200),
       xticks=range(0, 41, 10), title="The saturator: sweep the persistence a")
bx.legend(frameon=False, fontsize=7, loc="upper left")
for z in (ax, bx):
    z.tick_params(labelsize=7); z.xaxis.label.set_size(8); z.yaxis.label.set_size(8); z.title.set_size(9)
fig.suptitle("Revenue's fan drifts back and settles, unless persistence reaches one (seed 26108)", fontsize=10)
plt.tight_layout(); plt.show()
after a strong quarter (R0 = +30): the exact law, and 100,000 fresh paths (seed 26108)
quarters    mean      sd    simulated: mean      sd
       1   21.00   15.00              21.02   14.98
       2   14.70   18.31              14.67   18.29
       4    7.20   20.39               7.14   20.36
       8    1.73   20.97               1.58   20.99
      40    0.00   21.00               0.02   21.02
long run: variance 15^2/(1 - 0.7^2) = 441.2; volatility budget $21.00 million, 1.40 times the shock
covenant test at -45: long-run chance 1.61% a quarter (fresh paths, quarter 40: 1.63% +/- 0.04); ignoring persistence 0.135%

the variance saturator: persistence, long-run sd, and the covenant test's chance a quarter
  a = 0.00: sd   15.0   chance   0.13%
  a = 0.35: sd   16.0   chance   0.25%
  a = 0.50: sd   17.3   chance   0.47%
  a = 0.70: sd   21.0   chance   1.61%
  a = 0.90: sd   34.4   chance   9.55%
  a = 0.95: sd   48.0   chance  17.44%
  a = 0.99: sd  106.3   chance  33.61%
  a = 1.00: no long run; sd after 4, 8, 20 and 40 quarters (15 sqrt k): 30.0, 42.4, 67.1, 94.9
halving persistence to 0.35 (Online Appendix 8.B.4): budget $16.01 million, chance 0.248% a quarter, 6.5 times smaller, with no change in the market
two readings: Sigma_inf = [[0.11605, 0.003606], [0.003606, 0.015625]] (closed form 0.11605, 0.003606, 0.015625); long-run sds 0.341 and 0.125
Revenue's fan drifts back and settles, unless persistence reaches one (seed 26108)

Panel 2 — Check the multi-year view (Theorem 8.2(ii); Online Appendix 8.B.2: 19.6 percent, not 30)

AXIOM Lab 1.8, step 2. Multi-year risk views must compose: the odds over j+kj + k periods pass through every intermediate state after jj periods (the Chapman–Kolmogorov equation). The program office classifies each quarter as on plan or off plan; from on plan the next quarter is on plan with probability 0.9, and from off plan it returns to plan with probability 0.3. Three quarters ahead, starting on plan, the one-quarter view implies a 19.6 percent chance of being off plan, so a planning pack that showed 30 percent would be inconsistent with its own one-quarter view. In the long run the program is off plan a quarter of the time, in spells of about 3.3 quarters. The revenue fan passes the same test: its one-year fan compounded three times is its three-year fan, while a fan stretched by the square-root law ignores the restoring force.

Python Code
P = np.array([[0.9, 0.1], [0.3, 0.7]])                # a quarter: rows from on plan, from off plan
P2, P3 = P @ P, P @ P @ P
print("P^2 rows:", P2.round(4).tolist(), "  P^3 rows:", P3.round(4).tolist())
print("Chapman-Kolmogorov: P^2 P = P P^2 = P^3 ->", bool(np.allclose(P2 @ P, P3) and np.allclose(P @ P2, P3)))
OFF3 = P3[0, 1]
print(f"off plan three quarters after being on plan: {100 * OFF3:.1f}%; a pack showing 30% contradicts its own one-quarter view")
vals, vecs = np.linalg.eig(P.T)
PI = np.real(vecs[:, np.argmin(abs(vals - 1))]); PI = PI / PI.sum()
print(f"stationary: on plan {PI[0]:.2f}, off plan {PI[1]:.2f}; spells last {1 / P[0, 1]:.0f} quarters on plan, "
      f"{1 / P[1, 0]:.1f} off plan")
rng = np.random.default_rng(SEED)                      # fresh draws, lab seed: the checker by simulation
state = np.zeros(100_000, dtype=int)
for _ in range(3):
    state = (rng.random(100_000) < P[state, 1]).astype(int)
sim = float(state.mean())
print(f"100,000 simulated programs (seed 26108): {100 * sim:.2f}% off plan after three quarters, "
      f"+/- {100 * sqrt(sim * (1 - sim) / 1e5):.2f}")

a4, V1 = A_R ** 4, SD_R ** 2 * (1 - A_R ** 8) / (1 - A_R ** 2)       # revenue: the one-year kernel
V3_COMPOSED = V1 * (1 + a4 ** 2 + a4 ** 4)                          # three one-year fans compounded
V3_DIRECT = SD_R ** 2 * (1 - A_R ** 24) / (1 - A_R ** 2)            # the twelve-quarter fan
print(f"revenue fan: one-year sd {sqrt(V1):.2f}; three-year sd compounded {sqrt(V3_COMPOSED):.4f}, direct "
      f"{sqrt(V3_DIRECT):.4f}; the mean's decay 0.7^12 = {A_R ** 12:.4f} = (0.7^4)^3")
print(f"a three-year fan stretched by the square-root law, sqrt(3) x {sqrt(V1):.2f} = {sqrt(3 * V1):.1f}, "
      f"is not this model's: it ignores the restoring force")
P^2 rows: [[0.84, 0.16], [0.48, 0.52]]   P^3 rows: [[0.804, 0.196], [0.588, 0.412]]
Chapman-Kolmogorov: P^2 P = P P^2 = P^3 -> True
off plan three quarters after being on plan: 19.6%; a pack showing 30% contradicts its own one-quarter view
stationary: on plan 0.75, off plan 0.25; spells last 10 quarters on plan, 3.3 off plan
100,000 simulated programs (seed 26108): 19.67% off plan after three quarters, +/- 0.13
revenue fan: one-year sd 20.39; three-year sd compounded 21.0022, direct 21.0022; the mean's decay 0.7^12 = 0.0138 = (0.7^4)^3
a three-year fan stretched by the square-root law, sqrt(3) x 20.39 = 35.3, is not this model's: it ignores the restoring force

Panel 3 — Price an event risk (Theorem 8.4; Figure 8.3: $6 million a year, $19 and $43 million, 14 percent)

AXIOM Lab 1.8, step 3. Meridian's regulatory interventions arrive on a Poisson clock at λ=0.15\lambda = 0.15 a year, about once every 6.7 years, and cost on average $40 million with a standard deviation of $30 million, so E[J2]=402+302=2,500\mathrm{E}[J^2] = 40^2 + 30^2 = 2{,}500. Theorem 8.4(ii) gives event risk two ledger lines: the plan line λ E[J]=\lambda\,\mathrm{E}[J] = $6 million a year, which belongs in the expected plan, quiet years included, and the risk line λ E[J2]=375\lambda\,\mathrm{E}[J^2] = 375 a year, a standard deviation of about $19 million over one year and $43 million over five. Halving the frequency while doubling the size leaves the plan line unchanged and doubles the variance. And because the clock is memoryless (Theorem 8.4(i)), five quiet years leave next year's chance of an intervention where it was, 1−e−0.15≈141 - e^{-0.15} \approx 14 percent. Fresh histories drawn with the lab's seed, waiting times first and then sizes (Section 8.9), show all three.

Python Code
EJ2 = JR_MEAN ** 2 + JR_SD ** 2
PLAN_LINE, RISK_LINE = LAM_R * JR_MEAN, LAM_R * EJ2
SD1, SD5 = sqrt(RISK_LINE), sqrt(5 * RISK_LINE)
P_NEXT, P_FIVE = 1 - exp(-LAM_R), 1 - exp(-5 * LAM_R)
print(f"E[J^2] = 40^2 + 30^2 = {EJ2:,.0f}; plan line 0.15 x 40 = ${PLAN_LINE:.1f} million a year; "
      f"risk line 0.15 x 2,500 = {RISK_LINE:.0f} a year")
print(f"standard deviation ${SD1:.1f} million over one year, ${SD5:.1f} million over five; mean wait {1 / LAM_R:.1f} years")
print(f"half the frequency, twice the size: plan line {LAM_R / 2 * 2 * JR_MEAN:.1f}, variance {LAM_R / 2 * 4 * EJ2:.0f} a year")
print(f"chance of an intervention next year {100 * P_NEXT:.1f}%, after five quiet years as well; "
      f"at least one in five years {100 * P_FIVE:.1f}%")

rng = np.random.default_rng(SEED)                      # fresh draws, lab seed: 200,000 ten-year histories
N_H, T_H = 200_000, 10.0
times = np.cumsum(rng.exponential(1 / LAM_R, (N_H, 15)), axis=1)          # waiting times, then sizes
assert (times[:, -1] > T_H).all()
cost_sizes = rng.gamma((JR_MEAN / JR_SD) ** 2, JR_SD ** 2 / JR_MEAN, times.shape)
for t in (1.0, 5.0):
    c = np.where(times < t, cost_sizes, 0.0).sum(axis=1)
    print(f"  fresh histories, {t:.0f} year(s): mean {c.mean():.2f} (exact {PLAN_LINE * t:.0f}), "
          f"variance {c.var():.0f} (exact {RISK_LINE * t:.0f})")
quiet = times[:, 0] >= 5.0
in_year = lambda a, b: ((times >= a) & (times < b)).any(axis=1)
print(f"  memorylessness: an intervention in year 1, {100 * in_year(0, 1).mean():.1f}%; in year 6 after five quiet "
      f"years, {100 * in_year(5, 6)[quiet].mean():.1f}% ({quiet.sum():,} quiet histories)")

fig, ax = plt.subplots(figsize=(7.6, 3.6))
t = np.linspace(0, T_H, 501)
ax.fill_between(t, np.maximum(PLAN_LINE * t - 2 * np.sqrt(RISK_LINE * t), 0), PLAN_LINE * t + 2 * np.sqrt(RISK_LINE * t),
                color="#B71C1C", alpha=0.12, lw=0, label="risk band: plan line ± 2 sd, sd = √(375 × years)")
ax.plot(t, PLAN_LINE * t, color="#B71C1C", lw=1.8, ls="--", label="plan line: 0.15 × 40 = 6 a year")
for i, col in enumerate(("#1F4E79", "#E65100", "#2E7D32", "#5E35B1", "#616161")):
    ev = times[i][times[i] < T_H]
    steps = np.concatenate([[0.0], np.cumsum(cost_sizes[i][:len(ev)])])
    ax.step(np.concatenate([[0.0], ev, [T_H]]), np.concatenate([steps, [steps[-1]]]), where="post", color=col, lw=1.2,
            alpha=0.9, label="five fresh histories: flat stretches are quiet years" if i == 0 else None)
ax.set(xlabel="years", ylabel="cumulative compliance cost (\\$ million)", xlim=(0, T_H), ylim=(-12, 330),
       title="Event risk: a plan line through quiet years, a widening risk band (seed 26108)")
ax.legend(frameon=False, fontsize=8, loc="upper left"); plt.tight_layout(); plt.show()
E[J^2] = 40^2 + 30^2 = 2,500; plan line 0.15 x 40 = $6.0 million a year; risk line 0.15 x 2,500 = 375 a year
standard deviation $19.4 million over one year, $43.3 million over five; mean wait 6.7 years
half the frequency, twice the size: plan line 6.0, variance 750 a year
chance of an intervention next year 13.9%, after five quiet years as well; at least one in five years 52.8%
  fresh histories, 1 year(s): mean 5.99 (exact 6), variance 376 (exact 375)
  fresh histories, 5 year(s): mean 29.92 (exact 30), variance 1867 (exact 1875)
  memorylessness: an intervention in year 1, 13.9%; in year 6 after five quiet years, 14.0% (94,574 quiet histories)
Event risk: a plan line through quiet years, a widening risk band (seed 26108)

Panel 4 — Feel the flaw of averages (Theorem 8.5; Proposition 8.5; Online Appendix 8.B.7)

AXIOM Lab 1.8, step 4. In a linear company the average path obeys the deterministic law exactly (Theorem 8.5(i)): the mean workforce of Worked Example 4.1, with random attrition restored, follows Table 4.5's roll-up. Bend the function and the average of the outcomes leaves the outcome computed at average inputs (Theorem 8.5(ii)). Chapter 5's start-up grows geometrically near zero; with demand noise, Xt=X0exp⁡((r−σ2/2)t+σWt)X_t = X_0\exp\bigl((r - \sigma^2/2)t + \sigma W_t\bigr), and the exponential is convex. With r=0.9r = 0.9 and σ=0.6\sigma = 0.6 a year the mean grows by the factor 2.46 after one year and 6.05 after two, the median only by 2.05 and 4.22, and 62 and then 66 percent of paths fall below the mean: a plan that is right on average is behind on most paths. The more the function bends, the wider the gap; with no spread it closes (Proposition 8.3). A concave quantity errs the other way, as the trough of Worked Example 8.1 will show (Panel 7). And a step with sensitivity LL multiplies the mean-square spread it inherits by up to L2L^2 (Proposition 8.5): three expansive steps at 1.2 can triple it, and three consolidating steps at 0.8 cut it to at most 0.26 of its size.

Python Code
# linear: Worked Example 4.1's Unit A (400 legacy, 100 software engineers), a year at a time (Table 4.5)
A4 = np.array([[0.92, 0.0], [0.03, 0.96]])
x = np.array([400.0, 100.0]); EXPECTED = [x.sum()]
for _ in range(5):
    x = A4 @ x; EXPECTED.append(x.sum())
rng = np.random.default_rng(SEED)                      # fresh draws, lab seed: each engineer's year drawn
legacy, soft = np.full(100_000, 400), np.full(100_000, 100); totals = [legacy + soft]
for _ in range(5):
    moves = rng.multinomial(legacy, [0.92, 0.03, 0.05])          # stay legacy, retrain into software, leave
    soft, legacy = rng.binomial(soft, 0.96) + moves[:, 1], moves[:, 0]
    totals.append(legacy + soft)
print("year   Table 4.5 roll-up   mean of 100,000 random workforces (seed 26108)   sd of the fan")
for yr in range(6):
    tt = totals[yr]
    print(f"{yr:4d} {EXPECTED[yr]:15.1f} {tt.mean():25.2f} +/- {tt.std() / sqrt(len(tt)):.2f} {tt.std():24.1f}")

# convex: Online Appendix 8.B.7's start-up
R_G, SIG_G = 0.9, 0.6
GBM = {t: (exp(R_G * t), exp((R_G - SIG_G ** 2 / 2) * t), Phi(SIG_G * sqrt(t) / 2)) for t in (1.0, 2.0)}
z = np.random.default_rng(SEED).standard_normal(200_000)           # fresh draws, lab seed
for t, (mean_f, median_f, below) in GBM.items():
    xs = np.exp((R_G - SIG_G ** 2 / 2) * t + SIG_G * sqrt(t) * z)
    print(f"start-up after {t:.0f} year(s): mean factor {mean_f:.2f}, median {median_f:.2f}, {100 * below:.1f}% of paths below "
          f"the mean (fresh paths: {xs.mean():.2f}, {np.median(xs):.2f}, {100 * (xs < xs.mean()).mean():.1f}%)")
print("bend the function: volatility, mean and median factors after one year, the gap, the share below the mean")
for s in (0.0, 0.2, 0.4, 0.6, 0.8):
    print(f"  sigma {s:.1f}: mean {exp(R_G):.2f}, median {exp(R_G - s * s / 2):.2f}, gap {exp(R_G) - exp(R_G - s * s / 2):.2f}, "
          f"below the mean {100 * Phi(s / 2):.1f}%")
AMPLIFY, DAMP = 1.2 ** 6, 0.8 ** 6
print(f"Proposition 8.5: three steps at L = 1.2 multiply the inherited mean-square spread by up to {AMPLIFY:.2f}; "
      f"three at L = 0.8 by {DAMP:.3f}")
year   Table 4.5 roll-up   mean of 100,000 random workforces (seed 26108)   sd of the fan
   0           500.0                    500.00 +/- 0.00                      0.0
   1           476.0                    475.98 +/- 0.02                      4.8
   2           453.3                    453.26 +/- 0.02                      6.5
   3           431.8                    431.74 +/- 0.02                      7.7
   4           411.4                    411.33 +/- 0.03                      8.5
   5           392.1                    392.00 +/- 0.03                      9.2
start-up after 1 year(s): mean factor 2.46, median 2.05, 61.8% of paths below the mean (fresh paths: 2.46, 2.05, 61.8%)
start-up after 2 year(s): mean factor 6.05, median 4.22, 66.4% of paths below the mean (fresh paths: 6.04, 4.22, 66.4%)
bend the function: volatility, mean and median factors after one year, the gap, the share below the mean
  sigma 0.0: mean 2.46, median 2.46, gap 0.00, below the mean 50.0%
  sigma 0.2: mean 2.46, median 2.41, gap 0.05, below the mean 54.0%
  sigma 0.4: mean 2.46, median 2.27, gap 0.19, below the mean 57.9%
  sigma 0.6: mean 2.46, median 2.05, gap 0.41, below the mean 61.8%
  sigma 0.8: mean 2.46, median 1.79, gap 0.67, below the mean 65.5%
Proposition 8.5: three steps at L = 1.2 multiply the inherited mean-square spread by up to 2.99; three at L = 0.8 by 0.262

Panel 5 — Declare and size each channel (Worked Example 8.1, Steps 1–2: $62.5 million, 2.1 standard deviations, 26 percent)

Worked Example 8.1, Steps 1 and 2. The plan's trough is $482 million in quarter 7, $132 million above the floor. By Theorem 8.3(ii) the deviation's volatility budget is 50/1−0.62=50/\sqrt{1 - 0.6^2} = $62.5 million, so the trough's headroom is only 2.1 standard deviations. By Theorem 8.4, the event channel has a plan line of 0.10×120=0.10 \times 120 = $12 million a year and a 1−e−0.3=1 - e^{-0.3} = 26 percent chance of at least one closure in three years. Neither channel alone says how often a path breaches the floor: the deviation has twelve quarters to find it, and a closure lowers every quarter after it. The mean path is the plan less the closures' plan line (Theorem 8.4(iii)).

Python Code
PL20 = plan(DEPTH_PHASED)
QS = np.arange(QUARTERS + 1)
SD_K = SD_W * np.sqrt((1 - A_E ** (2 * QS)) / (1 - A_E ** 2))         # the deviation's sd by quarter
EXP_LOSS = LAM / 4 * QS * J_MEAN                                       # the closures' plan line, cumulated
MEAN_PATH = pl - EXP_LOSS
print("quarter   plan  phased  headroom  deviation sd  headroom in sd  expected closures  mean path")
for i in QS:
    hs = f"{(pl[i] - FLOOR) / SD_K[i]:14.2f}" if i else f"{'':>14s}"
    print(f"{i:7d} {pl[i]:6.1f} {PL20[i]:7.1f} {pl[i] - FLOOR:9.1f} {SD_K[i]:13.1f} {hs} {EXP_LOSS[i]:18.1f} {MEAN_PATH[i]:10.1f}")
K_LOW, TROUGH, HEAD = int(pl.argmin()), float(pl.min()), float(pl.min() - FLOOR)
BUDGET_E = SD_W / sqrt(1 - A_E ** 2)
print(f"volatility budget 50/sqrt(1 - 0.6^2) = ${BUDGET_E:.1f} million: the trough's headroom, ${HEAD:.0f} million, is "
      f"{HEAD / BUDGET_E:.2f} standard deviations")
P_ONE3 = 1 - exp(-3 * LAM)
print(f"closures: plan line 0.10 x 120 = ${LAM * J_MEAN:.0f} million a year; risk line 0.10 x (120^2 + 50^2) = "
      f"{LAM * (J_MEAN ** 2 + J_SD ** 2):,.0f} a year; at least one in three years 1 - e^-0.3 = {100 * P_ONE3:.1f}%, "
      f"by quarter 7 {100 * (1 - exp(-LAM * 7 / 4)):.1f}%")
print(f"one quarter at the trough, deviation alone: Phi(-{HEAD:.0f}/{BUDGET_E:.1f}) = {100 * Phi(-HEAD / BUDGET_E):.1f}%; "
      f"a path has twelve quarters, and a second channel")
print(f"the mean path bottoms out at ${MEAN_PATH.min():.1f} million in quarter {MEAN_PATH.argmin()}")
quarter   plan  phased  headroom  deviation sd  headroom in sd  expected closures  mean path
      0  620.0   620.0     270.0           0.0                               0.0      620.0
      1  574.2   589.1     224.2          50.0           4.48                3.0      571.2
      2  540.1   566.3     190.1          58.3           3.26                6.0      534.1
      3  515.6   550.3     165.6          61.0           2.71                9.0      506.6
      4  498.9   539.8     148.9          62.0           2.40               12.0      486.9
      5  488.5   533.6     138.5          62.3           2.22               15.0      473.5
      6  483.2   531.0     133.2          62.4           2.13               18.0      465.2
      7  482.0   531.1     132.0          62.5           2.11               21.0      461.0
      8  483.9   533.5     133.9          62.5           2.14               24.0      459.9
      9  488.2   537.4     138.2          62.5           2.21               27.0      461.2
     10  494.4   542.7     144.4          62.5           2.31               30.0      464.4
     11  501.9   548.8     151.9          62.5           2.43               33.0      468.9
     12  510.4   555.5     160.4          62.5           2.57               36.0      474.4
volatility budget 50/sqrt(1 - 0.6^2) = $62.5 million: the trough's headroom, $132 million, is 2.11 standard deviations
closures: plan line 0.10 x 120 = $12 million a year; risk line 0.10 x (120^2 + 50^2) = 1,690 a year; at least one in three years 1 - e^-0.3 = 25.9%, by quarter 7 16.1%
one quarter at the trough, deviation alone: Phi(-132/62.5) = 1.7%; a path has twelve quarters, and a second channel
the mean path bottoms out at $459.9 million in quarter 8

Panel 6 — Simulate (Worked Example 8.1, Step 3; Figure 8.4: 24.6 percent, standard error 0.14 points)

Worked Example 8.1, Step 3, and AXIOM Lab 1.8, step 5. Draw 100,000 three-year quarterly paths: each quarter, add the persistent deviation and any closures to the plan (Section 8.9). The draws use the book's random seed 8 (Volume II, Online Appendix 1.B.4), in the order of the book's engine, so the estimate is the printed one: liquidity falls below $350 million in at least one quarter in 24.6 percent of the paths, with a standard error of 0.246×0.754/100,000=0.14\sqrt{0.246 \times 0.754/100{,}000} = 0.14 percentage points. Figure 8.4 draws the fan and the distribution of each path's lowest quarter.

Python Code
L0, CLOSURES0 = simulate()                             # the book's draws: seed 8
P_BOOK, SE_BOOK, LOWS0 = odds(L0)
print(f"the book's draws (seed {BOOK_SEED}), {N_PATHS:,} paths: P(breach) = {100 * P_BOOK:.2f}%, standard error "
      f"sqrt(p(1 - p)/N) = {100 * SE_BOOK:.3f} percentage points")
print(f"95 percent interval {100 * (P_BOOK - 1.96 * SE_BOOK):.1f}% to {100 * (P_BOOK + 1.96 * SE_BOOK):.1f}%: "
      f"five times the board's 5 percent appetite")
LO10, HI90 = np.percentile(L0, [10, 90], axis=0)
print(f"quarter {K_LOW}: 80 percent of paths between ${LO10[K_LOW]:.0f} and ${HI90[K_LOW]:.0f} million around the plan's ${TROUGH:.0f}")

fig, (ax, bx) = plt.subplots(1, 2, figsize=(7.6, 3.6), sharey=True, gridspec_kw={"width_ratios": [2.1, 1]})
for i in range(30):
    ax.plot(QS, L0[i], color="#999999", lw=0.5, alpha=0.6)
ax.fill_between(QS, LO10, HI90, color="#1F4E79", alpha=0.15, lw=0, label="80 percent of paths")
ax.plot(QS, pl, color="#E65100", lw=1.8, ls="--", label=f"plan (trough {TROUGH:.0f})")
ax.plot(QS, L0.mean(axis=0), color="#1F4E79", lw=2, label="mean of all paths")
ax.axhline(FLOOR, color="#B71C1C", lw=1.1, label="board floor 350")
ax.set(xlabel="quarters", ylabel="liquidity (\\$ million)", xlim=(0, 12), ylim=(100, 800), xticks=range(0, 13, 2))
ax.legend(frameon=False, fontsize=7, loc="upper right", ncol=2)
bins = np.arange(50, 630, 10)
cnt, edges = np.histogram(LOWS0, bins=bins)
mid = (edges[1:] + edges[:-1]) / 2
bx.barh(mid, 100 * cnt / N_PATHS, height=9.5, color=["#B71C1C" if m < FLOOR else "#9DB3CC" for m in mid], lw=0)
bx.axhline(FLOOR, color="#B71C1C", lw=1.1)
bx.axhline(TROUGH, color="#E65100", lw=1.0, ls="--", label=f"planned trough {TROUGH:.0f}")
bx.axhline(LOWS0.mean(), color="#1F4E79", lw=1.0, label=f"average trough {LOWS0.mean():.0f}")
bx.plot([], [], "s", color="#B71C1C", label=f"below floor {100 * P_BOOK:.1f}%")
bx.set(xlabel="lowest quarter: % of paths", xlim=(0, 8))
bx.legend(frameon=False, fontsize=7, loc="upper right")
for z in (ax, bx):
    z.tick_params(labelsize=7); z.xaxis.label.set_size(8); z.yaxis.label.set_size(8)
fig.suptitle("One path in four breaches the floor (seed 8, the book's stream)", fontsize=10)
plt.tight_layout(); plt.show()
the book's draws (seed 8), 100,000 paths: P(breach) = 24.62%, standard error sqrt(p(1 - p)/N) = 0.136 percentage points
95 percent interval 24.4% to 24.9%: five times the board's 5 percent appetite
quarter 7: 80 percent of paths between $357 and $556 million around the plan's $482
One path in four breaches the floor (seed 8, the book's stream)

Panel 7 — Read the answer (Worked Example 8.1, Step 4; Online Appendix 8.B.6: $384 million, 71 percent, three in four)

Worked Example 8.1, Step 4. The planned trough is not the average trough: averaged over paths, each path's lowest quarter is $384 million, almost $100 million below the plan's $482 million, because the low point of a path is a concave function of the path and Jensen's inequality works against the plan (Theorem 8.5(ii)). Even the mean path bottoms out at $460 million, because the plan line of the event channel accrues $12 million a year. The two channels compound: the deviation alone breaches the floor in 8.4 percent of paths and the events alone in 10.6 percent, but together they do so in 24.6 percent. A path with a closure breaches 71 percent of the time, and three in four breaches occur on such paths. Online Appendix 8.B.6 adds the decomposition: by total probability, 0.259×0.709+0.741×0.084=0.2460.259 \times 0.709 + 0.741 \times 0.084 = 0.246, and by the law of total variance (Theorem 8.5(iii)) 40 percent of the uncertainty about a breach is uncertainty about whether a window closes.

Python Code
MEAN_SIM = L0.mean(axis=0)
print(f"planned trough ${TROUGH:.1f} million; the mean path's trough ${MEAN_SIM.min():.1f} million (exact {MEAN_PATH.min():.1f}); "
      f"the average of the path troughs ${LOWS0.mean():.1f} million (median {np.median(LOWS0):.1f})")
print(f"Jensen for the concave trough: min of the mean path {MEAN_SIM.min():.1f} >= mean of the minima {LOWS0.mean():.1f}, "
      f"{TROUGH - LOWS0.mean():.0f} below the plan's")
RESULTS = {"Plan as drawn, both channels": (P_BOOK, SE_BOOK, LOWS0, TROUGH)}
for name, kw in (("Execution and market deviation only", {"events": False}), ("Funding-window events only", {"noise": False})):
    p, se, lows = odds(simulate(**kw)[0])
    RESULTS[name] = (p, se, lows, TROUGH)
P_NOISE, P_EVENTS = RESULTS["Execution and market deviation only"][0], RESULTS["Funding-window events only"][0]
print(f"the deviation alone breaches in {100 * P_NOISE:.2f}% of paths, the events alone in {100 * P_EVENTS:.2f}%, "
      f"together in {100 * P_BOOK:.2f}%: they compound")
HIT, BREACH = CLOSURES0 > 0, LOWS0 < FLOOR
PE, P1, P0 = float(HIT.mean()), float(BREACH[HIT].mean()), float(BREACH[~HIT].mean())
SHARE = float((BREACH & HIT).sum() / BREACH.sum())
print(f"{100 * PE:.1f}% of paths suffer a closure and breach {100 * P1:.1f}% of the time, the others {100 * P0:.1f}%; "
      f"{100 * SHARE:.1f}% of breaches are on paths with a closure")
TOTAL = PE * P1 + (1 - PE) * P0
WITHIN = PE * P1 * (1 - P1) + (1 - PE) * P0 * (1 - P0)
BETWEEN = PE * P1 ** 2 + (1 - PE) * P0 ** 2 - TOTAL ** 2
print(f"total probability: {PE:.3f} x {P1:.3f} + {1 - PE:.3f} x {P0:.3f} = {TOTAL:.4f}")
print(f"law of total variance: p(1 - p) = {TOTAL * (1 - TOTAL):.4f} = {WITHIN:.4f} within the two scenarios + {BETWEEN:.4f} "
      f"between them: {100 * BETWEEN / (WITHIN + BETWEEN):.0f}% is whether a window closes")
planned trough $482.0 million; the mean path's trough $459.9 million (exact 459.9); the average of the path troughs $383.8 million (median 399.0)
Jensen for the concave trough: min of the mean path 459.9 >= mean of the minima 383.8, 98 below the plan's
the deviation alone breaches in 8.40% of paths, the events alone in 10.62%, together in 24.62%: they compound
25.9% of paths suffer a closure and breach 70.9% of the time, the others 8.4%; 74.6% of breaches are on paths with a closure
total probability: 0.259 x 0.709 + 0.741 x 0.084 = 0.2462
law of total variance: p(1 - p) = 0.1856 = 0.1107 within the two scenarios + 0.0749 between them: 40% is whether a window closes

Panel 8 — Test the levers (Worked Example 8.1, Step 5; Table 8.5: 12.4, 13.1 and 3.0 percent)

Worked Example 8.1, Step 5, and the rest of AXIOM Lab 1.8, step 5. A committed standby line that replaces up to $100 million of any closed funding window cuts the breach probability to 12.4 percent. Phasing the build so that its deepest cash draw is $49 million smaller lifts the trough to $531 million and cuts the probability to 13.1 percent. Together they bring it to 3.0 percent, within the board's appetite. Every scenario reuses the book's draws (seed 8), so the levers are compared on the same 100,000 futures (Table 8.5).

Python Code
for name, kw in (("Standby line (up to $100 million per closure)", {"line": LINE}), ("Phased build", {"depth": DEPTH_PHASED}),
                 ("Standby line and phased build", {"line": LINE, "depth": DEPTH_PHASED})):
    p, se, lows = odds(simulate(**kw)[0])
    RESULTS[name] = (p, se, lows, float(plan(kw.get("depth", DEPTH)).min()))
print(f"Table 8.5 (seed 8, {N_PATHS:,} paths each)  {'plan trough':>12s} {'breach':>8s} {'s.e.':>6s}  within 5%?")
for name, (p, se, lows, tr) in RESULTS.items():
    print(f"  {name:46s} {tr:9.0f} {100 * p:9.1f}% {100 * se:6.2f}  {'yes' if p <= APPETITE else 'no'}")
DRAW, DRAW20 = pl[0] - TROUGH, PL20[0] - PL20.min()
print(f"phased build: deepest draw ${DRAW20:.0f} million against ${DRAW:.0f} million, ${DRAW - DRAW20:.0f} million smaller; "
      f"trough ${PL20.min():.0f} million in quarter {PL20.argmin()}")
P_LINE = RESULTS["Standby line (up to $100 million per closure)"][0]
P_PHASED, P_BOTH = RESULTS["Phased build"][0], RESULTS["Standby line and phased build"][0]
print(f"either lever alone roughly halves the risk ({P_LINE / P_BOOK:.2f} and {P_PHASED / P_BOOK:.2f} of it); "
      f"only the two together meet the appetite ({100 * P_BOTH:.1f}%)")
Table 8.5 (seed 8, 100,000 paths each)   plan trough   breach   s.e.  within 5%?
  Plan as drawn, both channels                         482      24.6%   0.14  no
  Execution and market deviation only                  482       8.4%   0.09  no
  Funding-window events only                           482      10.6%   0.10  no
  Standby line (up to $100 million per closure)        482      12.4%   0.10  no
  Phased build                                         531      13.1%   0.11  no
  Standby line and phased build                        531       3.0%   0.05  yes
phased build: deepest draw $89 million against $138 million, $49 million smaller; trough $531 million in quarter 6
either lever alone roughly halves the risk (0.50 and 0.53 of it); only the two together meet the appetite (3.0%)

Panel 9 — Vary the number of paths (Section 8.9; Online Appendix 8.B.5: ±4.3, ±1.4 and ±0.4 points)

AXIOM Lab 1.8, step 5, first part. A Monte Carlo estimate is a sample mean, approximately normal around the truth with standard error s/Ns/\sqrt{N}, and p(1−p)/N\sqrt{p(1-p)/N} for a probability: one more decimal digit costs a hundredfold more paths. Asked of this model, the breach question returns 25.0 ± 4.3 percent with 100 paths, 25.2 ± 1.4 with 1,000 and 24.5 ± 0.4 with 10,000 (one standard error). The book's engine draws these three runs from their own streams, seeds 100+N100 + N (200, 1,100 and 10,100), and so does the cell below. Pinning a probability to ±0.1 percentage point takes 47,500 paths near 5 percent and 187,500 near 25 percent (Online Appendix 8.B.5). A fresh stream drawn with the lab's seed shows the estimate settling as its paths accumulate.

Python Code
CONV = []
for n in (100, 1_000, 10_000):
    p, se, _ = odds(simulate(n=n, seed=100 + n)[0])     # the book's engine: each run its own stream, seed 100 + N
    CONV.append((n, p, se))
    print(f"N = {n:7,d} (seed {100 + n:6,d}): {100 * p:5.1f}% +/- {100 * se:.1f}")
print(f"N = {N_PATHS:7,d} (seed      8): {100 * P_BOOK:5.1f}% +/- {100 * SE_BOOK:.2f}")
need = lambda p, h: p * (1 - p) / h ** 2
NEED5, NEED25 = need(0.05, 0.001), need(0.25, 0.001)
print(f"paths to pin a probability to +/-0.1 point: near 5%, {NEED5:,.0f}; near 25%, {NEED25:,.0f}")
print(f"Table 8.5's standard errors run from {100 * min(r[1] for r in RESULTS.values()):.2f} to "
      f"{100 * max(r[1] for r in RESULTS.values()):.2f} points")

fresh, _ = simulate(seed=SEED)                         # a fresh stream with the lab's seed: not the book's draws
b = (fresh[:, 1:].min(axis=1) < FLOOR).astype(float)
nn = np.arange(1, N_PATHS + 1)
run = np.cumsum(b) / nn
band = 2 * np.sqrt(np.maximum(run * (1 - run), 1e-12) / nn)
for n in (100, 1_000, 10_000, 100_000):
    print(f"fresh stream (seed 26108), first {n:7,d} paths: {100 * run[n - 1]:5.2f}% +/- {100 * band[n - 1] / 2:.2f}")
P_FRESH = float(run[-1])
print(f"fresh stream, all paths: {(P_FRESH - P_BOOK) / SE_BOOK:+.1f} standard errors from the book's 24.6%")

fig, ax = plt.subplots(figsize=(7.6, 3.6))
ax.fill_between(nn[49:], 100 * (run - band)[49:], 100 * (run + band)[49:], color="#1F4E79", alpha=0.15, lw=0,
                label="estimate ± 2 standard errors")
ax.plot(nn[49:], 100 * run[49:], color="#1F4E79", lw=1.4, label="estimate from the first N fresh paths")
ax.axhline(100 * P_BOOK, color="#E65100", lw=1.1, ls="--", label=f"the book's 100,000 paths: {100 * P_BOOK:.1f}%")
for n, p, se in CONV:
    ax.errorbar([n], [100 * p], yerr=[100 * se], fmt="o", color="#B71C1C", ms=4, capsize=3, lw=1)
ax.plot([], [], "o", color="#B71C1C", ms=4, label="Section 8.9's runs (seeds 100 + N), ± 1 s.e.")
ax.set_xscale("log")
ax.set_xticks([100, 1_000, 10_000, 100_000], ["100", "1,000", "10,000", "100,000"])
ax.set(xlabel="paths simulated, N", ylabel="breach probability (%)", xlim=(50, N_PATHS), ylim=(10, 40),
       title="The error bar shrinks like one over the square root of the paths (seed 26108)")
ax.legend(frameon=False, fontsize=8, loc="upper right"); plt.tight_layout(); plt.show()
N =     100 (seed    200):  25.0% +/- 4.3
N =   1,000 (seed  1,100):  25.2% +/- 1.4
N =  10,000 (seed 10,100):  24.5% +/- 0.4
N = 100,000 (seed      8):  24.6% +/- 0.14
paths to pin a probability to +/-0.1 point: near 5%, 47,500; near 25%, 187,500
Table 8.5's standard errors run from 0.05 to 0.14 points
fresh stream (seed 26108), first     100 paths: 27.00% +/- 4.44
fresh stream (seed 26108), first   1,000 paths: 26.40% +/- 1.39
fresh stream (seed 26108), first  10,000 paths: 25.00% +/- 0.43
fresh stream (seed 26108), first 100,000 paths: 24.56% +/- 0.14
fresh stream, all paths: -0.5 standard errors from the book's 24.6%
The error bar shrinks like one over the square root of the paths (seed 26108)

Validation — the book's numbers, and agreement with DCT_V1_Ch08_Lab.xlsx

Each checkpoint is a number printed in Chapter 8 (Worked Example 8.1, Table 8.5, Sections 8.6, 8.7 and 8.9, Figures 8.1 and 8.3), in Online Appendix 8.B, or in Table 4.5, which Section 8.8 cites. Simulated checkpoints use the book's streams (seed 8; seeds 100+N100 + N for Section 8.9's runs). The workbook recomputes the ones marked workbook with Excel formulas and shows PASS against the same engine values on its Checks sheet.

Python Code
R_ = RESULTS
checks = [
    ("revenue: long-run variance (workbook)", VAR_INF, 441, 0.5),
    ("revenue: volatility budget, $ million (workbook)", BUDGET, 21.0, 0.05),
    ("revenue: inflation from persistence (workbook)", BUDGET / SD_R, 1.40, 0.005),
    ("revenue: $45m shortfall, % a quarter (workbook)", 100 * P_COV, 1.6, 0.05),
    ("revenue: same, persistence ignored, % (workbook)", 100 * P_NAIVE, 0.13, 0.005),
    ("revenue after 1 quarter: mean (workbook)", revenue_law(1)[0], 21, 0.5),
    ("revenue after 1 quarter: sd (workbook)", revenue_law(1)[1], 15, 0.5),
    ("revenue after 2 quarters: mean (workbook)", revenue_law(2)[0], 15, 0.5),
    ("revenue after 2 quarters: sd (workbook)", revenue_law(2)[1], 18, 0.5),
    ("revenue after 4 quarters: mean (workbook)", revenue_law(4)[0], 7, 0.5),
    ("revenue after 4 quarters: sd (workbook)", revenue_law(4)[1], 20, 0.5),
    ("halved persistence: budget, $ million (workbook)", HALF, 16.0, 0.05),
    ("halved persistence: shortfall, % (workbook)", 100 * P_HALF, 0.25, 0.005),
    ("two readings: sigma_11 (workbook)", SIG[0, 0], 0.11605, 5e-6),
    ("two readings: sigma_12 (workbook)", SIG[0, 1], 0.003606, 5e-7),
    ("two readings: sigma_22 (workbook)", SIG[1, 1], 0.015625, 5e-7),
    ("two readings: first sd (workbook)", sqrt(SIG[0, 0]), 0.341, 5e-4),
    ("chain: P^2 on to on (workbook)", P2[0, 0], 0.84, 1e-9),
    ("chain: P^2 off to on (workbook)", P2[1, 0], 0.48, 1e-9),
    ("chain: P^3 on to off, three quarters (workbook)", OFF3, 0.196, 5e-4),
    ("chain: P^3 off to on (workbook)", P3[1, 0], 0.588, 5e-4),
    ("chain: long-run share on plan (workbook)", PI[0], 0.75, 1e-9),
    ("chain: off-plan spell, quarters (workbook)", 1 / P[1, 0], 3.3, 0.05),
    ("regulatory: E[J^2] (workbook)", EJ2, 2500, 1e-9),
    ("regulatory: plan line, $m a year (workbook)", PLAN_LINE, 6, 1e-9),
    ("regulatory: risk line, variance a year (workbook)", RISK_LINE, 375, 1e-9),
    ("regulatory: sd over one year (workbook)", SD1, 19, 0.5),
    ("regulatory: sd over five years (workbook)", SD5, 43, 0.5),
    ("regulatory: mean wait, years (workbook)", 1 / LAM_R, 6.7, 0.05),
    ("regulatory: next year after quiet years, % (workbook)", 100 * P_NEXT, 14, 0.5),
    ("half the frequency, twice the size: variance (workbook)", LAM_R / 2 * 4 * EJ2, 2 * 375, 1e-9),
    ("Table 4.5: Unit A expected total, year 5", EXPECTED[5], 392.1, 0.05),
    ("start-up: mean factor, one year (workbook)", GBM[1.0][0], 2.46, 0.005),
    ("start-up: mean factor, two years (workbook)", GBM[2.0][0], 6.05, 0.005),
    ("start-up: median factor, one year (workbook)", GBM[1.0][1], 2.05, 0.005),
    ("start-up: median factor, two years (workbook)", GBM[2.0][1], 4.22, 0.005),
    ("start-up: below the mean, one year, % (workbook)", 100 * GBM[1.0][2], 62, 0.5),
    ("start-up: below the mean, two years, % (workbook)", 100 * GBM[2.0][2], 66, 0.5),
    ("three steps at 1.2: spread factor (workbook)", AMPLIFY, 3, 0.05),
    ("three steps at 0.8: spread factor (workbook)", DAMP, 0.26, 0.005),
    ("plan: liquidity today, $ million (workbook)", pl[0], 620, 0.5),
    ("plan: trough, $ million (workbook)", TROUGH, 482, 0.5),
    ("plan: quarter of the trough (workbook)", K_LOW, 7, 0),
    ("plan: end of year 3, $ million (workbook)", pl[-1], 510, 0.5),
    ("plan: headroom above the floor (workbook)", HEAD, 132, 0.5),
    ("deviation: volatility budget (workbook)", BUDGET_E, 62.5, 0.05),
    ("deviation: headroom in sd (workbook)", HEAD / BUDGET_E, 2.1, 0.05),
    ("closures: plan line, $m a year (workbook)", LAM * J_MEAN, 12, 1e-9),
    ("closures: one or more in three years, % (workbook)", 100 * P_ONE3, 26, 0.5),
    ("breach probability, % (seed 8)", 100 * P_BOOK, 24.6, 0.05),
    ("its standard error, points (workbook)", 100 * SE_BOOK, 0.14, 0.005),
    ("average trough, $ million (seed 8)", LOWS0.mean(), 384, 0.5),
    ("mean path's trough, simulated (seed 8)", MEAN_SIM.min(), 460, 0.5),
    ("mean path's trough, exact (workbook)", MEAN_PATH.min(), 460, 0.5),
    ("deviation only, % (seed 8)", 100 * P_NOISE, 8.4, 0.05),
    ("events only, % (seed 8)", 100 * P_EVENTS, 10.6, 0.05),
    ("paths with a closure, % (seed 8)", 100 * PE, 25.9, 0.05),
    ("breach given a closure, % (seed 8)", 100 * P1, 70.9, 0.05),
    ("breach given no closure, % (seed 8)", 100 * P0, 8.4, 0.05),
    ("breaches with a closure, %: three in four (seed 8)", 100 * SHARE, 75, 0.5),
    ("total probability (workbook)", TOTAL, 0.246, 5e-4),
    ("breach-indicator variance (workbook)", TOTAL * (1 - TOTAL), 0.186, 5e-4),
    ("variance within scenarios (workbook)", WITHIN, 0.111, 5e-4),
    ("variance between scenarios (workbook)", BETWEEN, 0.075, 5e-4),
    ("between share, % (workbook)", 100 * BETWEEN / (WITHIN + BETWEEN), 40, 0.5),
    ("standby line, % (seed 8)", 100 * P_LINE, 12.4, 0.05),
    ("phased build, % (seed 8)", 100 * P_PHASED, 13.1, 0.05),
    ("standby line and phased build, % (seed 8)", 100 * P_BOTH, 3.0, 0.05),
    ("phased build: plan trough (workbook)", PL20.min(), 531, 0.5),
    ("phased build: draw smaller by (workbook)", DRAW - DRAW20, 49, 0.5),
    ("Table 8.5: smallest standard error (workbook)", 100 * min(r[1] for r in R_.values()), 0.05, 0.005),
    ("100 paths: estimate, % (seed 200)", 100 * CONV[0][1], 25.0, 0.05),
    ("100 paths: standard error (workbook)", 100 * CONV[0][2], 4.3, 0.05),
    ("1,000 paths: estimate, % (seed 1,100)", 100 * CONV[1][1], 25.2, 0.05),
    ("1,000 paths: standard error (workbook)", 100 * CONV[1][2], 1.4, 0.05),
    ("10,000 paths: estimate, % (seed 10,100)", 100 * CONV[2][1], 24.5, 0.05),
    ("10,000 paths: standard error (workbook)", 100 * CONV[2][2], 0.4, 0.05),
    ("paths for 0.1 point near 5% (workbook)", NEED5, 47500, 0.5),
    ("paths for 0.1 point near 25% (workbook)", NEED25, 187500, 0.5),
]
ok, width = 0, max(len(name) for name, *_ in checks)
for name, got, want, tol in checks:
    status = "PASS" if abs(got - want) <= tol + 1e-9 else "FAIL"; ok += status == "PASS"
    f = ".6f" if abs(want) < 1 else ".4f"
    print(f"{name:{width}s} {got:14{f}}   book {want:12{f}}   {status}")
print(f"\n{ok} of {len(checks)} checkpoints PASS")
revenue: long-run variance (workbook)                         441.1765   book     441.0000   PASS
revenue: volatility budget, $ million (workbook)               21.0042   book      21.0000   PASS
revenue: inflation from persistence (workbook)                  1.4003   book       1.4000   PASS
revenue: $45m shortfall, % a quarter (workbook)                 1.6080   book       1.6000   PASS
revenue: same, persistence ignored, % (workbook)              0.134990   book     0.130000   PASS
revenue after 1 quarter: mean (workbook)                       21.0000   book      21.0000   PASS
revenue after 1 quarter: sd (workbook)                         15.0000   book      15.0000   PASS
revenue after 2 quarters: mean (workbook)                      14.7000   book      15.0000   PASS
revenue after 2 quarters: sd (workbook)                        18.3098   book      18.0000   PASS
revenue after 4 quarters: mean (workbook)                       7.2030   book       7.0000   PASS
revenue after 4 quarters: sd (workbook)                        20.3898   book      20.0000   PASS
halved persistence: budget, $ million (workbook)               16.0128   book      16.0000   PASS
halved persistence: shortfall, % (workbook)                   0.247516   book     0.250000   PASS
two readings: sigma_11 (workbook)                             0.116052   book     0.116050   PASS
two readings: sigma_12 (workbook)                             0.003606   book     0.003606   PASS
two readings: sigma_22 (workbook)                             0.015625   book     0.015625   PASS
two readings: first sd (workbook)                             0.340665   book     0.341000   PASS
chain: P^2 on to on (workbook)                                0.840000   book     0.840000   PASS
chain: P^2 off to on (workbook)                               0.480000   book     0.480000   PASS
chain: P^3 on to off, three quarters (workbook)               0.196000   book     0.196000   PASS
chain: P^3 off to on (workbook)                               0.588000   book     0.588000   PASS
chain: long-run share on plan (workbook)                      0.750000   book     0.750000   PASS
chain: off-plan spell, quarters (workbook)                      3.3333   book       3.3000   PASS
regulatory: E[J^2] (workbook)                                2500.0000   book    2500.0000   PASS
regulatory: plan line, $m a year (workbook)                     6.0000   book       6.0000   PASS
regulatory: risk line, variance a year (workbook)             375.0000   book     375.0000   PASS
regulatory: sd over one year (workbook)                        19.3649   book      19.0000   PASS
regulatory: sd over five years (workbook)                      43.3013   book      43.0000   PASS
regulatory: mean wait, years (workbook)                         6.6667   book       6.7000   PASS
regulatory: next year after quiet years, % (workbook)          13.9292   book      14.0000   PASS
half the frequency, twice the size: variance (workbook)       750.0000   book     750.0000   PASS
Table 4.5: Unit A expected total, year 5                      392.0572   book     392.1000   PASS
start-up: mean factor, one year (workbook)                      2.4596   book       2.4600   PASS
start-up: mean factor, two years (workbook)                     6.0496   book       6.0500   PASS
start-up: median factor, one year (workbook)                    2.0544   book       2.0500   PASS
start-up: median factor, two years (workbook)                   4.2207   book       4.2200   PASS
start-up: below the mean, one year, % (workbook)               61.7911   book      62.0000   PASS
start-up: below the mean, two years, % (workbook)              66.4313   book      66.0000   PASS
three steps at 1.2: spread factor (workbook)                    2.9860   book       3.0000   PASS
three steps at 0.8: spread factor (workbook)                  0.262144   book     0.260000   PASS
plan: liquidity today, $ million (workbook)                   620.0000   book     620.0000   PASS
plan: trough, $ million (workbook)                            481.9504   book     482.0000   PASS
plan: quarter of the trough (workbook)                          7.0000   book       7.0000   PASS
plan: end of year 3, $ million (workbook)                     510.4240   book     510.0000   PASS
plan: headroom above the floor (workbook)                     131.9504   book     132.0000   PASS
deviation: volatility budget (workbook)                        62.5000   book      62.5000   PASS
deviation: headroom in sd (workbook)                            2.1112   book       2.1000   PASS
closures: plan line, $m a year (workbook)                      12.0000   book      12.0000   PASS
closures: one or more in three years, % (workbook)             25.9182   book      26.0000   PASS
breach probability, % (seed 8)                                 24.6220   book      24.6000   PASS
its standard error, points (workbook)                         0.136234   book     0.140000   PASS
average trough, $ million (seed 8)                            383.8315   book     384.0000   PASS
mean path's trough, simulated (seed 8)                        459.9415   book     460.0000   PASS
mean path's trough, exact (workbook)                          459.8541   book     460.0000   PASS
deviation only, % (seed 8)                                      8.4030   book       8.4000   PASS
events only, % (seed 8)                                        10.6190   book      10.6000   PASS
paths with a closure, % (seed 8)                               25.9120   book      25.9000   PASS
breach given a closure, % (seed 8)                             70.9015   book      70.9000   PASS
breach given no closure, % (seed 8)                             8.4359   book       8.4000   PASS
breaches with a closure, %: three in four (seed 8)             74.6162   book      75.0000   PASS
total probability (workbook)                                  0.246220   book     0.246000   PASS
breach-indicator variance (workbook)                          0.185596   book     0.186000   PASS
variance within scenarios (workbook)                          0.110687   book     0.111000   PASS
variance between scenarios (workbook)                         0.074908   book     0.075000   PASS
between share, % (workbook)                                    40.3611   book      40.0000   PASS
standby line, % (seed 8)                                       12.3740   book      12.4000   PASS
phased build, % (seed 8)                                       13.0680   book      13.1000   PASS
standby line and phased build, % (seed 8)                       3.0030   book       3.0000   PASS
phased build: plan trough (workbook)                          530.9739   book     531.0000   PASS
phased build: draw smaller by (workbook)                       49.0235   book      49.0000   PASS
Table 8.5: smallest standard error (workbook)                 0.053971   book     0.050000   PASS
100 paths: estimate, % (seed 200)                              25.0000   book      25.0000   PASS
100 paths: standard error (workbook)                            4.3301   book       4.3000   PASS
1,000 paths: estimate, % (seed 1,100)                          25.2000   book      25.2000   PASS
1,000 paths: standard error (workbook)                          1.3729   book       1.4000   PASS
10,000 paths: estimate, % (seed 10,100)                        24.4900   book      24.5000   PASS
10,000 paths: standard error (workbook)                       0.430028   book     0.400000   PASS
paths for 0.1 point near 5% (workbook)                      47500.0000   book   47500.0000   PASS
paths for 0.1 point near 25% (workbook)                    187500.0000   book  187500.0000   PASS

79 of 79 checkpoints PASS

Next. Chapter 9 turns the company model into an architecture: components with their own states, wired by flows of demand, cash, capability and policy, and bound by constraints that reach across the wiring; the risk architecture of Chapter 12 attaches this chapter's distributions to that wiring. AXIOM-08 runs the same model interactively (Lab 1.8); this notebook and the workbook are its reproducible record.

Dynamic Corporate Transformation — Volume I: Foundations and Mathematical Framework; Volume II: Enterprise Optimization & Applications
Jump to any chapter

Volume I: Foundations and Mathematical Framework

  1. Ch. 1Introduction to Dynamic Corporate Transformation
  2. Ch. 2Enterprise Systems and Transformation
  3. Ch. 3Mathematical Foundations
  4. Ch. 4Enterprise Modeling Principles
  5. Ch. 5Enterprise State Representation
  6. Ch. 6Enterprise Transformation Operators
  7. Ch. 7Dynamic Enterprise Systems
  8. Ch. 8Stochastic Enterprise Dynamics
  9. Ch. 9Enterprise State Architecture
  10. Ch. 10Enterprise Capital Architecture
  11. Ch. 11Enterprise Performance Architecture
  12. Ch. 12Enterprise Risk, Resilience, and Robustness Architecture
  13. Ch. 13Unified Enterprise Transformation Architecture
  14. Ch. 14Mathematical Analysis of the Unified Enterprise Transformation Architecture
  15. Ch. 15Mathematical Formulation of Enterprise Optimization
  16. Ch. 16Synthesis, Future Directions, and Transition to Volume II

Volume II: Enterprise Optimization & Applications

  1. Ch. 1Introduction to Enterprise Optimization
  2. Ch. 2The General Enterprise Optimization Problem Revisited
  3. Ch. 3Convex Enterprise Optimization
  4. Ch. 4Nonlinear and Mixed-Integer Enterprise Optimization
  5. Ch. 5Dynamic Enterprise Optimization
  6. Ch. 6Optimal Control of Enterprise Systems
  7. Ch. 7Dynamic Programming for Enterprise Systems
  8. Ch. 8Hamilton–Jacobi–Bellman Enterprise Framework
  9. Ch. 9Stochastic Enterprise Optimization
  10. Ch. 10Neuro-Fuzzy Robust Enterprise Optimization
  11. Ch. 11Distributionally Robust Enterprise Optimization
  12. Ch. 12Multi-Objective Enterprise Optimization
  13. Ch. 13Machine Learning for Enterprise Transformation
  14. Ch. 14Artificial Intelligence for Enterprise Optimization
  15. Ch. 15Enterprise Digital Twins and Autonomous Enterprise Transformation
  16. Ch. 16Enterprise Applications and Integrated Transformation Case Studies

Dynamic Corporate Transformation

Springer Nature · Management for Professionals · Forthcoming 2027

  • Volume I — Foundations and Mathematical Framework
  • Volume II — Enterprise Optimization & Applications
Buy Volume I: Dynamic Corporate Transformation: Foundations and Mathematical FrameworkBuy Volume II: Dynamic Corporate Transformation: Enterprise Optimization & Applications
Jump to any chapter

Volume I: Foundations and Mathematical Framework

  1. Ch. 1Introduction to Dynamic Corporate Transformation
  2. Ch. 2Enterprise Systems and Transformation
  3. Ch. 3Mathematical Foundations
  4. Ch. 4Enterprise Modeling Principles
  5. Ch. 5Enterprise State Representation
  6. Ch. 6Enterprise Transformation Operators
  7. Ch. 7Dynamic Enterprise Systems
  8. Ch. 8Stochastic Enterprise Dynamics
  9. Ch. 9Enterprise State Architecture
  10. Ch. 10Enterprise Capital Architecture
  11. Ch. 11Enterprise Performance Architecture
  12. Ch. 12Enterprise Risk, Resilience, and Robustness Architecture
  13. Ch. 13Unified Enterprise Transformation Architecture
  14. Ch. 14Mathematical Analysis of the Unified Enterprise Transformation Architecture
  15. Ch. 15Mathematical Formulation of Enterprise Optimization
  16. Ch. 16Synthesis, Future Directions, and Transition to Volume II

Volume II: Enterprise Optimization & Applications

  1. Ch. 1Introduction to Enterprise Optimization
  2. Ch. 2The General Enterprise Optimization Problem Revisited
  3. Ch. 3Convex Enterprise Optimization
  4. Ch. 4Nonlinear and Mixed-Integer Enterprise Optimization
  5. Ch. 5Dynamic Enterprise Optimization
  6. Ch. 6Optimal Control of Enterprise Systems
  7. Ch. 7Dynamic Programming for Enterprise Systems
  8. Ch. 8Hamilton–Jacobi–Bellman Enterprise Framework
  9. Ch. 9Stochastic Enterprise Optimization
  10. Ch. 10Neuro-Fuzzy Robust Enterprise Optimization
  11. Ch. 11Distributionally Robust Enterprise Optimization
  12. Ch. 12Multi-Objective Enterprise Optimization
  13. Ch. 13Machine Learning for Enterprise Transformation
  14. Ch. 14Artificial Intelligence for Enterprise Optimization
  15. Ch. 15Enterprise Digital Twins and Autonomous Enterprise Transformation
  16. Ch. 16Enterprise Applications and Integrated Transformation Case Studies
